3/16” AIRLESS HOSE

3/16" Airless Paint Sprayer HoseKM Coating offers two types of 3/16” high pressure airless paint sprayer hose. Both have great flexibility and can typically be seen applying spray coatings such as stains, lacquers and oil based paints. A very popular size for being used as a whip hose, this will reduce hand fatigue and provide more flexibility at the spray gun which is essential when spraying for long periods of time. Whether you require this paint spray hose to be used on a Wagner airless paint sprayer or Graco airless sprayers, you can find the exact high pressure hose needed to get the job done.

Our 25 foot high pressure airless paint hose rated at 3,500 PSI is one of the most popular hoses equipped on an air assisted airless paint sprayer. This particular hose is compact, lightweight and used largely on Graco air assisted airless units and Kremlin air assisted airless paint sprayers.



Series: PA13 (3/16")
Maximum Working Pressure: 5,075 PSI
Minimum Burst Pressure: 20,300 PSI
Core: Polyamide
Braid: High Tensile Brass Plated Carbon Steel
Cover: Polyurethane

Color Length Part Number Fittings Price Qty Place Order
Yellow 3' PA13- 3FM 1/4" Female x 1/4" Male
$13.95

Yellow 5' PA13- 5FM 1/4" Female x 1/4" Male
$17.90

Yellow 15' PA13-15FBE 1/4" Females
$32.15

Yellow 15' PA13-15FFSS 1/4" Females Stainless Steel
$49.30

Yellow 15' PA13-15JIC JIC#5 Females
$37.90

Yellow 15' PA13-15JIS JIC#5 Females Stainless Steel
$49.30

Yellow 25' PA13-25FBE 1/4" Females
$38.25

Yellow 25' PA13-25FFSS 1/4" Females Stainless Steel
$55.40

Yellow 25' PA13-25JIC JIC#5 Females
$43.95

Yellow 25' PA13-25JIS JIC#5 Females Stainless Steel
$55.40

Yellow 50' PA13-50FBE 1/4" Females
$60.00

Yellow 50' PA13-50FFSS 1/4" Females Stainless Steel
$77.15

Yellow 50' PA13-50JIC JIC#5 Females
$65.75

Yellow 50' PA13-50JIS JIC#5 Females Stainless Steel
$77.15



Series: KX23 (3/16")
Maximum Working Pressure: 3,500 PSI
Minimum Burst Pressure: 14,000 PSI
Core: Polyamide
Braid: Polyester Textile Fiber
Cover: Polyurethane

Color Length Part Number Fittings Price Qty Place Order

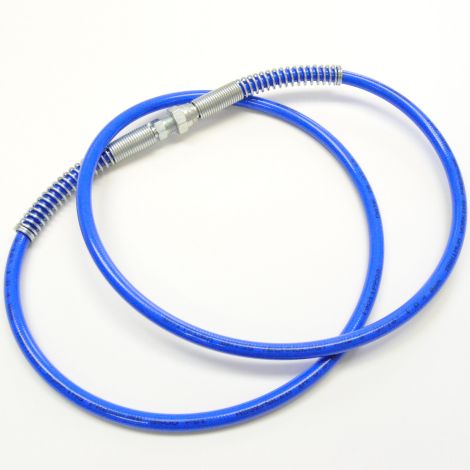

Blue 3' KX23- 3FM 1/4" Female x 1/4" Male
$13.00

Blue 5' KX23- 5FM 1/4" Female x 1/4" Male
$16.70

Blue 15' KX23-15FBE 1/4" Females
$32.15

Blue 15' KX23-15FFSS 1/4" Females Stainless Steel
$49.30

Blue 15' KX23-15JIC JIC#5 Females
$37.90

Blue 15' KX23-15JIS JIC#5 Females Stainless Steel
$49.30

Blue 25' KX23-25FBE 1/4" Females
$38.25

Blue 25' KX23-25FFSS 1/4" Females Stainless Steel
$55.40

Blue 25' KX23-25JIC JIC#5 Females
$43.95

Blue 25' KX23-25JIS JIC#5 Females Stainless Steel
$55.40

Blue 50' KX23-50FBE 1/4" Females
$60.00

Blue 50' KX23-50FFSS 1/4" Females Stainless Steel
$77.15

Blue 50' KX23-50JIC JIC#5 Females
$65.75

Blue 50' KX23-50JIS JIC#5 Females Stainless Steel
$77.15
