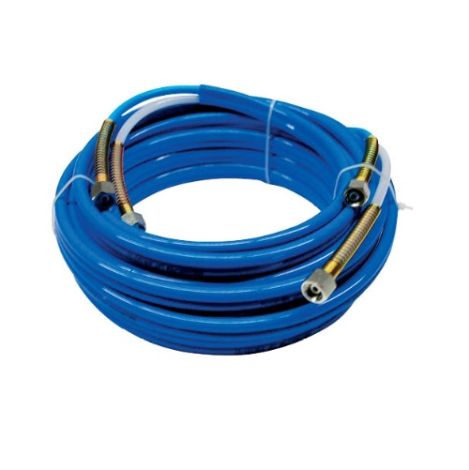

LOW PRESSURE HOSE

Low Pressure - Fluid and Air Hose

Our low pressure fluid and pneumatic hose is available in various sizes and PSI ranges. These low pressure hoses are compatible with your HVLP airless paint sprayer and air assisted airless sprayer. Purchased by the foot or more commonly by the reel, these pressure hoses can be customized to the exact length needed for the job. Paired with our large variety of fully stainless steel fittings, it will surely solve your fluid handling needs. These stainless steel fittings are strong, durable and can easily be cleaned for multiple uses.

These low pressure fluid hoses can be seen applying a large variety of spray coatings including oil based paints, stains, lacquers and latex. Braided with a high tensile synthetic fiber yarn, these lightweight yet sturdy pressure hoses will certainly resolve all of your fluid dynamic requirements. In addition, both our fluid hose and air hose are color coded for easy identification.



Series: MO14 (1/4")
Maximum Working Pressure: 110 PSI
Minimum Burst Pressure: 440 PSI
Core: Polyamide
Braid: None
Cover: Polyurethane

Color Part Number Main Description Price Qty Place Order
Red MO14 Air Hose - Per foot



Series: LPV14 (1/4")
Maximum Working Pressure: 290 PSI
Minimum Burst Pressure: 1,160 PSI
Core: Polyamide
Braid: High Tensile Synthetic Fiber Yarn
Cover: Polyurethane

Color Part Number Main Description Price Qty Place Order
Black LPV14 Fluid Hose - Per foot



Series: LPV16 (3/8")
Maximum Working Pressure: 220 PSI
Minimum Burst Pressure: 880 PSI
Core: Polyamide
Braid: High Tensile Synthetic Fiber Yarn
Cover: Polyurethane

Color Part Number Main Description Price Qty Place Order
Black LPV16 Fluid Hose - Per foot



REUSABLE LOW PRESSURE HOSE FITTINGS

Easy fit reusable stainless steel fittings.

76-341

Part Number Main Description Price Qty Place Order
76-341 1/4" NPSM (F) for use with MO14
$11.25

76-358 3/8" NPSM (F) for use with MO14
$11.25

76-441 1/4" NPSM (F) for use with LPV14
$12.10

76-458 3/8" NPSM (F) for use with LPV14
$12.10

76-688 3/8" NPSM (F) for use with LPV16
$12.95

76-691 1/4" NPSM (F) for use with LPV16
$12.95



REUSABLE SPRING GUARDS

Easy fit and lock in spring guards.

34-050

Part Number Main Description Price Qty Place Order
34-050 For use with MO14
$3.20

34-060 For use with LPV14
$3.50
