1/8” AIRLESS HOSE



1/8" ID Airless Paint Sprayer HoseThe most flexible out of our high pressure hose selection is the 1/8” ID airless paint spray hose. Depending upon the fitting configuration this airless sprayer hose can be used with a Wagner airless paint sprayer, Graco airless paint sprayer or Kremlin air assisted airless paint sprayer. Ideally this high pressure hose is used with the least viscous spray coatings such as stains, lacquers and oil based paints. If a thicker spray coating is used, a larger ID high pressure paint hose is recommended to prevent clogging, such as our 3/16" ID pressure hose.

The 1/8” ID airless paint spray hose is commonly used in shorter lengths and referred to as a whip hose. Connecting the supply hose to the spray gun, this whip hose will reduce hand fatigue and provide great flexibility for the painter. Another popular length for the 1/8” ID high pressure hose is the 25 foot, which have been assembled on the Graco Merkur air assisted airless sprayer.



Series: PA12 (1/8")
Maximum Working Pressure: 5,000 PSI
Minimum Burst Pressure: 20,000 PSI
Core: Polyamide
Braid: High Tensile Brass Plated Carbon Steel
Cover: Polyurethane

Color Length Part Number Fittings Price Qty Place Order

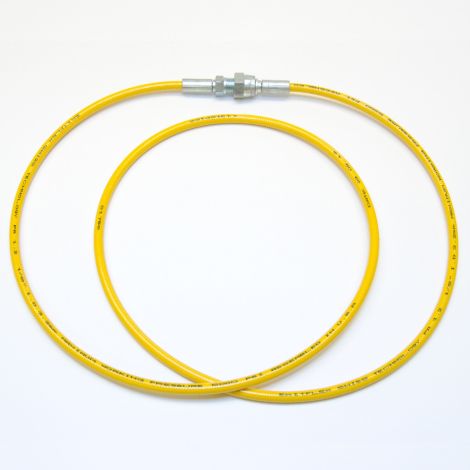

Yellow 3' PA12- 3FM 1/4" Female x 1/4" Male
$15.00

Yellow 5' PA12- 5FM 1/4" Female x 1/4" Male
$19.30

Yellow 15' PA12-15FBE 1/4" Females
$33.95

Yellow 15' PA12-15FFSS 1/4" Females Stainless Steel
$51.10

Yellow 15' PA12-15JIC JIC#5 Females
$39.65

Yellow 15' PA12-15JIS JIC#5 Females Stainless Steel
$51.10

Yellow 25' PA12-25FBE 1/4" Females
$40.75

Yellow 25' PA12-25FFSS 1/4" Females Stainless Steel
$57.90

Yellow 25' PA12-25JIC JIC#5 Females
$46.45

Yellow 25' PA12-25JIS JIC#5 Females Stainless Steel
$57.90

Yellow 50' PA12-50FBE 1/4" Females
$65.00

Yellow 50' PA12-50FFSS 1/4" Females Stainless Steel
$82.15

Yellow 50' PA12-50JIC JIC#5 Females
$70.75

Yellow 50' PA12-50JIS JIC#5 Females Stainless Steel
$82.15



Series: KX12 (1/8")
Maximum Working Pressure: 3,200 PSI
Minimum Burst Pressure: 12,800 PSI
Core: Polyamide
Braid: Polyester Textile Fiber
Cover: Polyurethane

Color Length Part Number Fittings Price Qty Place Order
Blue 15' KX12-15FBE 1/4" Females
$33.95

Blue 15' KX12-15FFSS 1/4" Females Stainless Steel
$51.10

Blue 15' KX12-15JIC JIC#5 Females
$39.65

Blue 15' KX12-15JIS JIC#5 Females Stainless Steel
$51.10

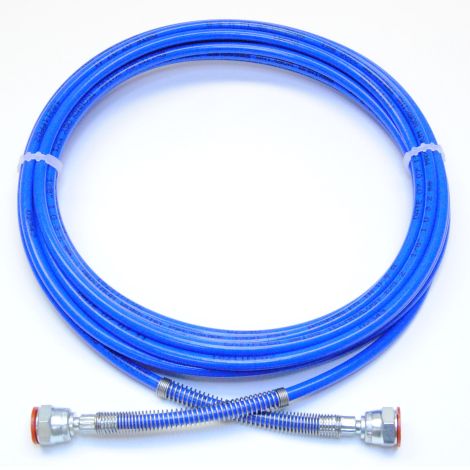

Blue 25' KX12-25FBE 1/4" Females
$40.75

Blue 25' KX12-25FFSS 1/4" Females Stainless Steel
$57.90

Blue 25' KX12-25JIC JIC#5 Females
$46.45

Blue 25' KX12-25JIS JIC#5 Females Stainless Steel
$57.90

Blue 50' KX12-50FBE 1/4" Females
$65.00

Blue 50' KX12-50FFSS 1/4" Females Stainless Steel
$82.15

Blue 50' KX12-50JIC JIC#5 Females
$70.75

Blue 50' KX12-50JIS JIC#5 Females Stainless Steel
$82.15
